NASA Finalizes Orion Thermal Protection System Upgrades

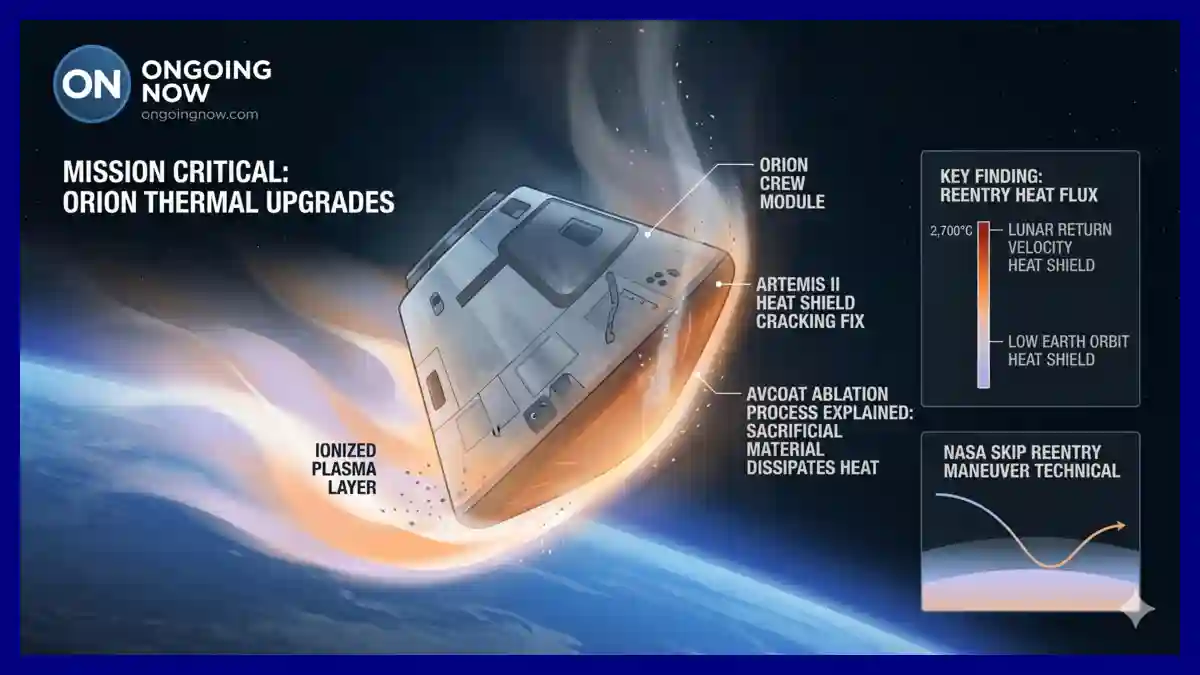

NASA and Lockheed Martin have finalized several Orion thermal protection system upgrades to address performance variances observed during the Artemis I flight. The primary focus involves the Artemis II heat shield cracking fix, which resolves unexpected “char loss” or divots discovered upon the capsule’s return. These modifications are critical because spacecraft atmospheric reentry physics dictate that the Orion capsule temperature resistance must withstand over 2,700°C. To manage these loads, the Lockheed Martin Orion thermal design utilizes a specific Avcoat ablation process explained as a sacrificial layer that carries heat away. During the upcoming crewed mission, the spacecraft will execute a NASA skip reentry maneuver technical sequence to bleed off lunar return velocity heat shield stressors. Maintaining the Artemis II capsule structural integrity is paramount as the mission transitions from uncrewed testing to carrying four astronauts.

The Engineering Behind the Avcoat Ablation Process Explained

The Orion spacecraft relies on a sophisticated heat shield located at its base to protect the crew module from the plasma generated during reentry. This shield is coated with Avcoat, a synthetic material that has been a staple of NASA thermal protection since the Apollo era. However, the modern Avcoat ablation process explained in recent technical briefings involves a much more complex manufacturing method than its predecessor.

Avcoat works by intentionally charring and breaking away in a controlled manner, a process known as ablation. As the material burns, it creates a boundary layer of cooler gas that shields the underlying structure. For Orion, this material is applied into a honeycomb cellular structure composed of more than 300,000 individual cells, each manually filled and then machined to precise specifications.

During the Artemis I mission, the Avcoat performed its primary duty of protecting the capsule, but it did not erode exactly as predicted. Instead of a uniform thinning, small pieces of the charred material liberated prematurely. This phenomenon led to the Orion base heat shield divots that became a central focus of the subsequent engineering investigation and the eventual Artemis II heat shield cracking fix.

Addressing the Artemis II Heat Shield Cracking Fix

Following the recovery of the Artemis I capsule, NASA engineers identified over 100 locations where the Avcoat material had experienced unexpected “spallation.” This occurs when internal pressure from trapped gases causes small chunks of the charred surface to pop off. While the capsule remained safe, the risk was that larger pieces could break away, potentially damaging other components or altering the aerodynamic properties of the vehicle.

The Artemis II heat shield cracking fix involves several strategic adjustments to the thermal protection system’s chemistry and application. Engineers found that the gaps between the Avcoat and the internal honeycomb structure could be refined to allow for better outgassing. By modifying the bonding process and the thermal curing cycle, the team has increased the material’s resilience against internal pressure buildup.

Furthermore, NASA has implemented more rigorous non-destructive evaluation (NDE) techniques, such as advanced X-ray and ultrasonic scanning. These tools allow technicians to identify microscopic voids within the Avcoat before the mission begins. This ensures that the Artemis II capsule structural integrity meets the safety margins required for a crewed flight.

Spacecraft Atmospheric Reentry Physics and Thermal Loads

The physics of a lunar return are significantly more punishing than a return from Low Earth Orbit (LEO). While a capsule returning from the International Space Station travels at roughly 28,000 kilometers per hour, the Orion capsule temperature resistance must account for velocities exceeding 40,000 kilometers per hour.

At these speeds, the kinetic energy of the spacecraft is converted into heat through a massive shock wave in front of the heat shield. The Orion thermal protection system upgrades are designed to handle a heat flux that is nearly three times greater than that experienced by the Space Shuttle. The ablation material vs thermal tiles debate was settled early in Orion’s development; while tiles are reusable and efficient for LEO, only an ablative shield like Avcoat can survive the extreme environment of a direct lunar return.

To further mitigate these loads, the mission profile utilizes a specific reentry trajectory. By dipping into the atmosphere and then “skipping” back out briefly, the spacecraft can distribute the thermal load over a longer duration, reducing the peak temperature experienced by the heat shield.

Analysis: The Significance of the NASA Skip Reentry Maneuver Technical

One of the most innovative aspects of the Orion mission profile is the NASA skip reentry maneuver technical execution. This maneuver is not merely a flight path choice; it is a thermal management strategy that directly impacts the design of the heat shield. By skipping off the upper atmosphere like a stone on water, the Orion capsule can extend its range and more precisely target its splashdown point.

Note: Data based on NASA Orion Reference Guide and Artemis I post-flight analysis.

The skip maneuver allows the spacecraft to bleed off approximately half of its velocity during the first “dip.” This results in two distinct thermal peaks rather than one massive, sustained pulse. This technical approach is vital for ensuring the Artemis II capsule structural integrity, as it prevents the Avcoat from reaching a point of total saturation where the internal bond line could fail.

Lockheed Martin Orion Thermal Design Enhancements

The Lockheed Martin Orion thermal design has undergone iterative improvements based on terabytes of data collected during the Artemis I flight. Beyond the heat shield itself, the “backshell” of the capsule—the part not directly facing the flow—utilizes different materials. While the base uses Avcoat, the backshell is covered in roughly 1,300 thermal protection system tiles.

Engineers discovered that during the initial reentry, some of the liberated Avcoat particles struck the backshell tiles. While the damage was cosmetic, the Orion thermal protection system upgrades for Artemis II include reinforced coatings on specific backshell areas. This prevents “pitting” from debris, ensuring that the entire exterior of the craft remains aerodynamically clean.

The integration of these tiles requires a flexible sealant that can expand and contract. Because the Orion capsule temperature resistance must span the range from the cold of deep space to the heat of reentry, every seam is a potential point of failure. The updated design uses a more robust Gap Filler material that remains pliable at lower temperatures than the previous iteration.

Technical Achievement: Validating the Lunar Return Velocity Heat Shield

Validating a heat shield for lunar velocities is a challenge that cannot be fully replicated in wind tunnels on Earth. NASA utilizes arc-jet facilities to blast small samples of Avcoat with high-energy plasma, but the Artemis I mission was the first full-scale test of the current Lockheed Martin Orion thermal design.

The discovery of the Orion base heat shield divots was actually a testament to the high-resolution sensors embedded within the shield. These sensors provided real-time data on char depth and internal temperature. This data confirmed that despite the surface cracking, the interior of the heat shield remained well within the expected temperature range, protecting the pressurized crew module effectively.

“The heat shield is a consumable, but its consumption must be predictable,” stated a NASA technical report regarding the Artemis I findings. “The adjustments made for Artemis II are focused on aligning the physical behavior of the Avcoat with our high-fidelity computer models.”

Why This Matters: Human Safety in Deep Space

The shift from uncrewed to crewed missions changes the risk calculus for NASA. For Artemis I, the goal was to push the hardware to its limits. For Artemis II, the goal is absolute reliability. The Artemis II heat shield cracking fix is not just an engineering tweak; it is a foundational requirement for the “Moon to Mars” architecture.

If the heat shield were to fail, the consequences would be catastrophic. By addressing the Orion base heat shield divots now, NASA is ensuring that the four astronauts scheduled for the lunar flyby can trust the vehicle during the most dangerous phase of the mission. The success of these Orion thermal protection system upgrades will pave the way for the Artemis III landing mission, which will face similar reentry conditions.

Comparative Insight: Ablation Material vs Thermal Tiles

The choice of ablation material vs thermal tiles is a classic engineering trade-off in aerospace. Thermal tiles, like those used on the Space Shuttle or the SpaceX Starship, function by radiating heat away. They are excellent for repeated use but are relatively brittle and can fail if subjected to the extreme pressures of high-velocity reentry.

In contrast, the Avcoat used in the Lockheed Martin Orion thermal design is an insulator that survives by being destroyed. For a lunar mission, where the spacecraft hits the atmosphere with massive kinetic energy, radiation alone is insufficient. The chemical energy required to turn the Avcoat into gas provides a much more efficient “heat sink.” This is why NASA continues to favor ablative technology for deep space return vehicles like Orion and the upcoming Mars Sample Return missions.

Future Exploration Context and Structural Integrity

As NASA looks beyond the Moon, the lessons learned from the Orion capsule temperature resistance studies will inform the design of future Mars descent vehicles. Reentering the Martian atmosphere, while less dense, still requires significant thermal protection. The data gained from the Artemis II capsule structural integrity tests will be shared across the industry, benefitting commercial partners and international agencies.

The Orion thermal protection system upgrades represent a “lessons learned” approach to engineering. By identifying a non-critical anomaly in a test flight and implementing a robust fix before a crewed flight, NASA demonstrates the rigorous safety culture required for deep space exploration.

Summary of Key Technical Updates

• Material Density: Refined Avcoat mixture to reduce internal gas pressure.

• Bonding Process: Enhanced honeycomb adhesion to prevent material liberation.

• Thermal Profiling: Adjusted NASA skip reentry maneuver technical parameters to optimize heat distribution.

• Inspection: Implementation of 3D X-ray scanning for all heat shield segments.

The meticulous work on the lunar return velocity heat shield ensures that when Orion returns from the Moon, it does so with a predictable and safe thermal performance. These upgrades close the loop on the Artemis I findings and set a new standard for thermal protection in the era of modern lunar exploration.

Stay sharp with Ongoing Now!

Source and Data Limitations: This report is based on official NASA Artemis I Post-Flight Evaluation reports (2023-2025), Lockheed Martin Orion Program technical briefings, and NASA Office of Inspector General (OIG) reports regarding Artemis mission readiness. Data regarding the Avcoat ablation process and skip reentry maneuvers are sourced from peer-reviewed aerospace engineering papers and official NASA.gov mission updates. Claims regarding the “divots” and “spallation” are corroborated by the NASA Engineering and Safety Center (NESC) findings. This article excludes speculative dates for future launches beyond those confirmed by NASA’s official 2026 manifest.
