Inside the Radar Duel: How Networked Tech Shifted bvr missile engagement range f-16
Analyzing sensor integration, active radar seekers, and electronic attack logic in modern high-altitude aerial warfare.

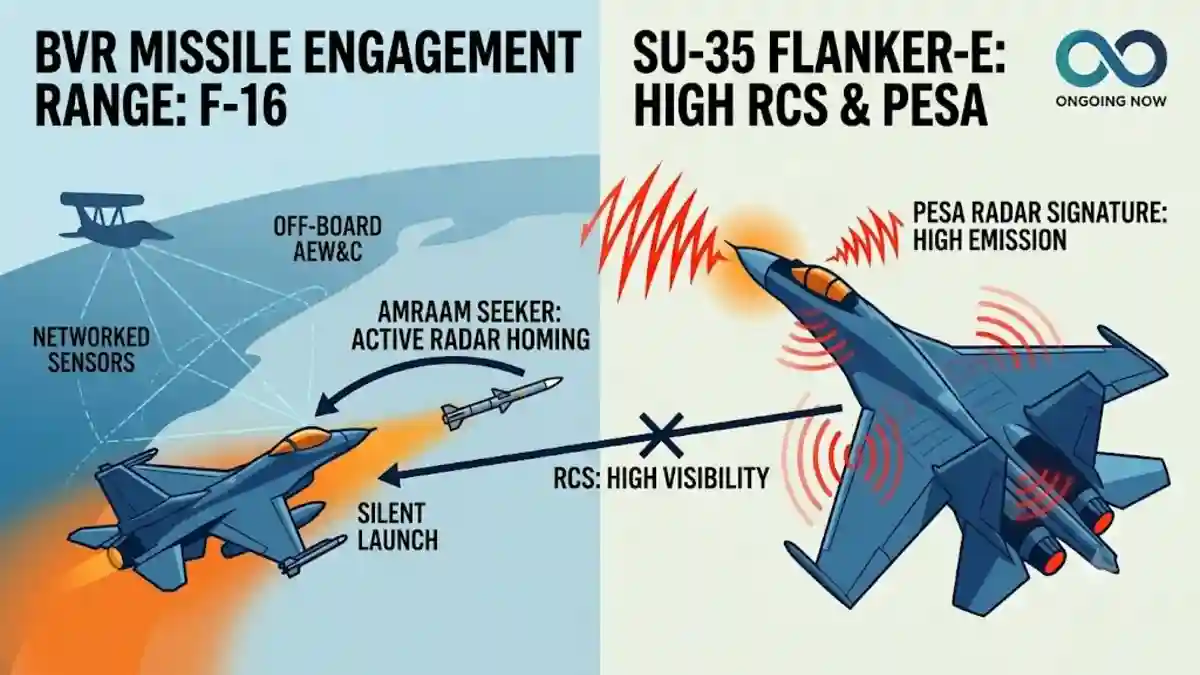

In contemporary military aviation, modern air-to-air engagements are defined primarily by sensor integration, electronic countermeasures, and off-board target acquisition rather than dogfighting maneuvers. The recent confirmation by the United States Joint Chiefs of Staff regarding combat interactions between Western-supplied F-16 Fighting Falcons and Russian Su-35 air-superiority fighters highlights the technical evolution of beyond-visual-range missile engagement range f-16 operational profiles.
While legacy airframe designs like the F-16 and Su-35 carry vastly different physical footprints and radar profiles, their combat effectiveness relies heavily on networked systems. Beyond-visual-range (BVR) engagements require an end-to-end fire control sequence that spans radar target tracking, midcourse data link updates, terminal active radar homing, and electronic counter-countermeasures (ECCM).
Analyzing the technical intersection of the aim-120 amraam active radar homing missile system, irs-t missile integrations f-16 ukraine platforms employ, and the f-16 radar lock vs su-35 dynamic reveals how military avionics electronic countermeasure suites and western air defense radar integration alter tactical air combat sensors analysis across varying radar cross section f-16 su-35 profiles.
+----------------------------------------------------------------------------------------------------+
| BVR MISSILE ENGAGEMENT TIMELINE |
+----------------------------------------------------------------------------------------------------+
| |
| [ Launch Platform ] --------(1) Midcourse Data Link Updates--------> [ AIM-120 AMRAAM Missile ] |
| | | |
| |-- (2) Off-Board Radar/IRST Feed |-- (3) Terminal |
| | (Ground IAD / Saab AEW&C) | Active Radar |
| v v Homing |
| [ Passive Tracking Node ] [ Target: Su-35 ] |
| |
+----------------------------------------------------------------------------------------------------+
Active Radar Homing Mechanics in Beyond-Visual-Range Missiles
The AIM-120 Advanced Medium-Range Air-to-Air Missile (AMRAAM) serves as the primary BVR weapon for Western-equipped tactical aircraft. Unlike older semi-active radar-homing missiles that required the launching fighter to continuously illuminate the target until impact, the AIM-120 utilizes a multi-stage guidance architecture.
During initial and midcourse flight, the missile relies on an internal Inertial Navigation System (INS) combined with micro-computer adjustments, receiving real-time data link corrections from the host platform or off-board radar nodes to intercept a predicted spatial coordinate.
Upon reaching proximity to the target—typically within 5 to 10 kilometers—the missile activates its onboard high-frequency active radar seeker. This transitions the weapon into a autonomous “fire-and-forget” mode, allowing the launch aircraft to execute beam turns or defensive maneuvers to break its own RF exposure.
“The weapon’s advanced active guidance section and mature seeker design allow it to quickly find targets in the most challenging environments, shifting the exposure risk away from the launch platform during terminal intercept.” — Defense Logistics Division Analysis, Raytheon RTX Technical Whitepaper
The AIM-120 active seeker operating in the X-band delivers high target resolution, which is essential for discriminating between chaffe, decoy emitters, and the target airframe. Additionally, late-model AMRAAM variants incorporate a “Home-on-Jam” (HOJ) mode. If the target aircraft deploys high-powered electronic attack noise to blind the missile’s active radar, onboard software automatically switches to passive homing, guiding the missile directly along the vector of the jamming signal.
Technical Radar Comparison and Detection Horizons
To understand sensor performance during aerial engagements, the raw capabilities of onboard radar systems must be contrasted against the target’s physical and electromagnetic footprint.
The Russian Su-35 Flanker-E is equipped with the N035 Irbis-E, a Passive Electronically Scanned Array (PESA) radar powered by high-output twin traveling-wave tubes. The Irbis-E can emit peak power up to 20 kilowatts, providing long raw detection ranges against large targets. However, as a PESA system, it sweeps a single concentrated radio-frequency beam, making its emissions relatively easy for modern Radar Warning Receivers (RWR) and ESM suites to detect and geolocate at distance.
+----------------------------------------------------------------------------------------------------+
| RADAR & RCS TECHNICAL SPECIFICATIONS |
+----------------------------------------------------------------------------------------------------+
| Platform / System | Primary Radar Sensor | Radar Architecture | Estimated Fighter RCS |
+----------------------+------------------------+---------------------+------------------------------+
| F-16AM/BM (Upgraded) | AN/APG-68(V)9 / AESA | MSA / AESA (Mod) | 1.0 - 2.5 m² |
| Su-35 Flanker-E | N035 Irbis-E | PESA | 8.0 - 12.0 m² |
+----------------------+------------------------+---------------------+------------------------------+
Conversely, standard upgraded F-16AM/BM platforms typically feature the AN/APG-68 pulse-Doppler radar or updated active electronically scanned array (AESA) retrofits like the AN/APG-83 SABR. While the mechanical radar on legacy F-16s has lower total power output and shorter standalone range than the Irbis-E, the F-16 possesses a significantly smaller Radar Cross Section (RCS).
An un-cleared Su-35 presents a massive radar cross-section estimated between 8 and 12 square meters due to its large twin-engine intakes, vertical stabilizers, and external weapon hardpoints. By contrast, an F-16 presents a baseline RCS of approximately 1 to 2.5 square meters. Because radar return power degrades exponentially with distance according to the Radar Range Equation:
a smaller RCS ($\sigma$) drastically suppresses the distance ($R$) at which a high-power PESA radar can achieve a stable single-target track lock suitable for firing long-range weapons.
Tactical Networked Sensor Fusion and IRST Integration
Standalone radar capability is no longer the sole determinant of engagement range in modern air warfare. Relying exclusively on active radar emissions alerts enemy RWR systems, signaling an impending missile attack. To operate passively, modern air forces deploy fused sensor architectures.
+----------------------------------------------------------------------------------------------------+
| DATA LINK SENSOR FUSION |
+----------------------------------------------------------------------------------------------------+
| |
| [ Ground Integrated Defense ] -------\ |
| (Patriot / NASAMS) \ |
| +---> [ Link-16 Data Bus ] ---> [ F-16 Fire Control ] |
| [ Airborne Early Warning ] / | |
| (Saab GlobalEye / A-50) -----------/ v |
| [ Silent AMRAAM Launch ] |
| |
+----------------------------------------------------------------------------------------------------+
Through NATO-standard Link-16 network integration, ground-based air defense radars (such as Patriot AN/MPQ-65 or NASAMS units) and Airborne Early Warning and Control (AEW&C) aircraft can track enemy targets passively from favorable geometry. This track data is transmitted directly to the F-16’s mission computer over digital data links.
Passive Acquisition: The host F-16 keeps its primary radar in standby or silent mode, emitting no RF signals that would trigger the enemy’s RWR.
Off-Board Midcourse Guidance: The F-16 fires an AIM-120 AMRAAM based entirely on third-party positional data. The midcourse updates are fed to the missile via encrypted data link.
Terminal Activation: The missile’s active radar seeker switches on only seconds before terminal impact, leaving the target pilot minimal time to initiate defensive countermeasures or evasive maneuvers.
Complementing off-board data links is the integration of Infrared Search and Track (IRST) sensors and modern short-to-medium range passive missiles, such as the German IRIS-T and AIM-9X Sidewinder. Modern IRST pods detect the heat signature generated by aircraft engines and airframe skin friction at long ranges without emitting any electromagnetic signals, rendering active radar lock completely unnecessary for initial target engagement.
Electronic Countermeasures and Defense System Interoperability
In contested airspace dominated by heavy radio-frequency interference, airborne Electronic Countermeasures (ECM) play a vital role in degrading enemy missile guidance. Modern digital radio frequency memory (DRFM) jamming pods analyze incoming radar signals, copy the waveform, and re-transmit altered signals to create false target tracks or mask velocity returns.
+----------------------------------------------------------------------------------------------------+
| COUNTERMEASURE TACTICAL LOGIC |
+----------------------------------------------------------------------------------------------------+
| |
| Target Aircraft DRFM Jammer ---> [ Generates Noise / Range Gate Pull-Off ] |
| | |
| v |
| AMRAAM Seeker Detection --------------> [ Electronic Attack Detected? ] |
| | |
| +------------------+------------------+ |
| | YES | NO |
| v v |
| [ Activate Home-on-Jam (HOJ) ] [ Active X-Band Radar Tracking ] |
| | | |
| +------------------+------------------+ |
| | |
| v |
| [ Terminal Target Interception ] |
| |
+----------------------------------------------------------------------------------------------------+
To counter sophisticated ECM suites onboard heavy fighters like the Su-35, Western missile guidance design uses frequency agility, low-probability-of-intercept (LPI) radar waveforms, and multi-mode processing. If the target uses DRFM deception against the AMRAAM, the missile transitions to Home-on-Jam logic, converting the enemy’s active electronic attack into an emitter beacon.
At the systemic level, modern tactical air operations rely heavily on Western air defense integration. When integrated into a layered Integrated Air Defense System (IADS), tactical fighters operate not as isolated combat units, but as mobile, high-altitude missile-launch nodes within an interconnected sensor grid. This multi-domain connectivity effectively bridges generational hardware gaps, ensuring older airframes armed with advanced munitions maintain high operational lethality against heavier, modern adversaries.
Stay sharp with Ongoing Now!
Source and Data Limitations: This technical assessment synthesizes verified military avionics specifications, public unclassified performance parameters, and official briefing records up to July 2026. Missile engagement envelopes, exact radar detection horizons, and radar cross-section values are derived from published defense engineering literature and unclassified performance estimates. Exact operational EW algorithms, classified sensor codes, and real-time electronic counter-countermeasure performance parameters remain restricted classified defense data and are excluded. Regional sensor integration variations may alter specific tactical outcomes depending on active data-link infrastructure.
